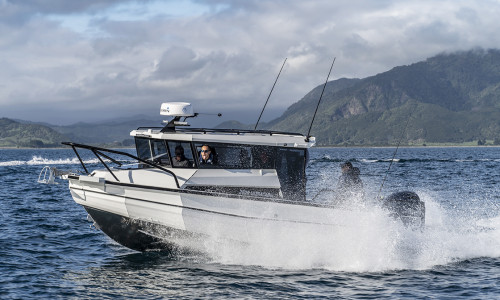

2500 Ultracab® XL

Scroll

Explore anywhere, anytime, any weather

The 2500 Ultracab® XL is the perfect choice for long adventures. The extended cabin area of the XL provides more people with more space and extensive storage for overnight stays and diverse explorations. The 2500 Ultracab® XL was designed to handle all conditions you may encounter, from holiday cruising, family fishing trips to serious off-shore fishing. Adventuring with confidence is an understatement when it comes to the 2500 Ultracab® XL.

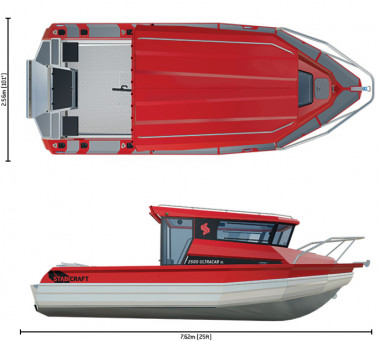

Boat Specification

Length Metric (feet) 7.62m (25ft)
Max Persons 9
Recommended HP Twin 150hp
Maximum HP 400hp
Maximum Engine Weight 635kg (1400lbs)
Leg Length 25”
Fuel Tank 378L (100Gal)
External Beam 2.56m (101”)
Internal Beam 1.97m (78”)
Deadrise 19°
Tube Thickness 4mm (5/32”)
Hull Thickness 6mm (15/64”)
Total Sealed Volume (approx) 2096L (554gal)
Dry Hull Weight (approx) 1630kg (3593lbs)
Length on Trailer 9.6m (31’6”)
2500UCXL

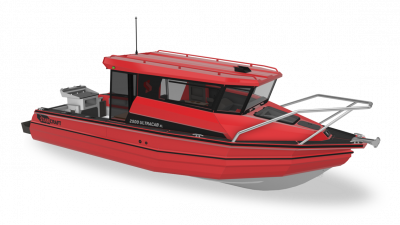

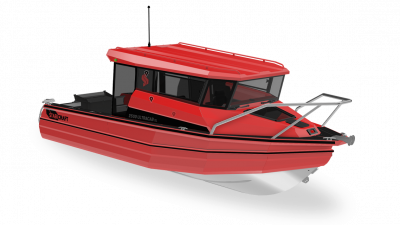

Build your 2500 Ultracab® XL

Immerse yourself in our new interactive 3D builder and create your dream Stabicraft®.

Get Started

Market Availability

New Zealand | StabicraftNew Zealand Australia | StabicraftAustralia USA | StabicraftUnited States Canada | StabicraftCanada Scandinavia | StabicraftScandinavia New Caledonia | StabicraftNew Caledonia

Meet Stabicraft® owner Dave Strudwick, he's the proud owner of a very familiar looking 2500 Ultracab® XL called 'Hex Head'. A beast that has been used on South Seas Spearo television show, it's proven itself in the open ocean and though out the waterways of the South Island of New Zealand.

Dave has made sure the boat suits his needs with a selection of electronics, custom rear shade cover and everything else he needs to Adventure with Confidence™!

📌 Find out more about this model here



Stabicraft® 2500 Ultracab® XL - Dave Strudwick New Zealand

Meet Stabicraft® owner Dave Strudwick, he's the proud owner of a very familiar looking 2500 Ultracab® XL called 'Hex Head'. A beast that has been used on South Seas Spearo television show, it's proven itself in the open ocean and though out the waterways of the South Island of New Zealand.

Dave has made sure the boat suits his needs with a selection of electronics, custom rear shade cover and everything else he needs to Adventure with Confidence™!

📌 Find out more about this model here



Stabicraft® 2250 Ultracab® WT - Ben Wornall New Zealand

Meet Stabicraft® #2250UltracabWT owner Ben Wornall, Based in Gore New Zealand Ben runs his own panel and paint shop his #stabi has a unique paint job that stands out!

Built for taking his family boating, he loves the walk thru design and the ability to get in and out of the boat easily.

📌 Find out more about this model here

Stabicraft® Dealership Profile - Stabicraft Southern Invercargill, New Zealand

The team from The Captain Magazine check out New Zealand's most southern Stabicraft Dealer!

Hayden and his team from Stabicraft Southern got together on the beautiful Lake Wanaka with a couple of owners and put on a show with an epic selection of Stabi's!

📌 Visit Stabicraft Southern here

Stabicraft® 2250 Ultracab® WT - Tyler Jeffries USA

The Captain magazine meet Stabicraft® owner Tyler Jeffries from Homer, Alaska USA.

Safety for his family and friends got him in a Stabicraft® and he absolutely loves it, from Salmon Fishing to Bear Hunting Tyler is making the most of this epic beast.

📌 Find out more about this model here

Stabicraft® - The Hunters Club and South Seas Spearo Interview With The Captain

⚓️ The Captain caught up with The Hunters Club and South Seas Spearo Executive Producer Dave Shaw, Underwater Camera Man Sam Wild and Hunter & Fisher Andre Alipate, talking wildest encounters including one with a Great White Shark, the best things about New Zealand and heaps more.

Stabicraft proudly supports South Seas Spearo 🐟
Adventure With Confidence™ 💪

Find out more on the lads:
📌 Hunters Club : https://bit.ly/3N6BiJV
📌 South Seas Spearo : https://bit.ly/3N8kyBO

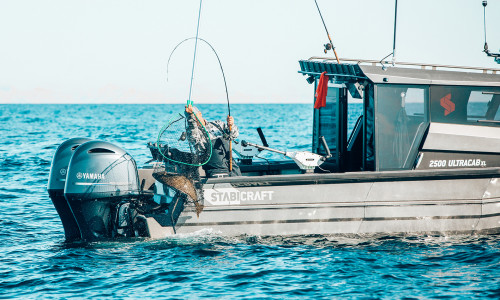

Stabicraft® 2500 Ultracab® XL - Exploring NZ Road Trip

The Stabicraft 2500 Ultracab® XL is not just an offshore weapon but a vessel that suits a variety of marine entertainment applications such as fishing, diving, overnighting, cooking, wining and dining. In essence it lets you adventure the way you want to adventure, no matter your part of the world.

2500 Ultracab XL - Scott Sayer, USA

Stabicraft owner Scott Sayer showcases his 2500 Ultracab XL in the port of Garibaldi, Oregon, USA. What an epic rig that he has truly made his own! A massive thank you to Scott for welcoming us on board and sharing your story. You're a legend.

2500 Ultracab XL - Tom & Helena

We caught up with Stabi owners Tom & Helena on their 2500 ULTRACAB XL in Oregon, USA. Such a great story showcasing the fundamentals behind our Adventure with Confidence brand.

2500 Ultracab XL - Alfred Montaner Walk Through

Alfred Montaner and Tyler from Boat Country walk through the 2500 Ultracab XL and the 2250 Ultra Centrecab.

2500 Ultracab XL - Feature Overview

On the road in under 6800lbs the Stabicraft 2500 Ultracab provides all the comfort of a pilothouse boat, but with the versatility of a trailer boat.

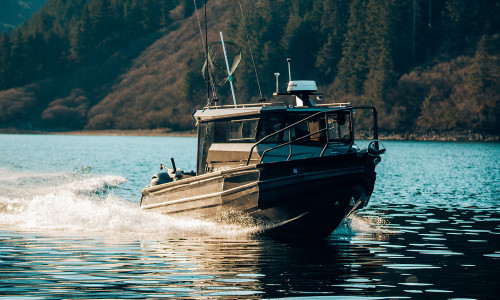

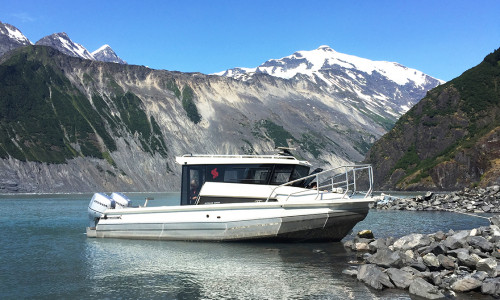

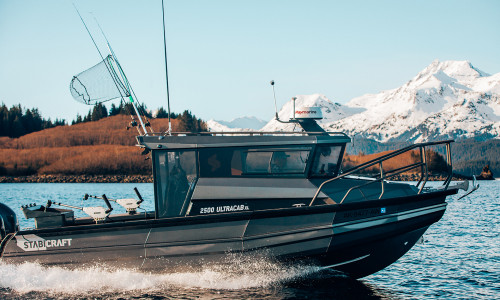

2500 Ultracab XL - Alaska, USA

From one side of the world to the other, the Stabicraft 2500 Ultracab XL is thrown into the Alaskan wilderness. Travis our local Alaskan dealer explains why the 2500 Ultracab XL is designed specifically to suit his 'backyard'. Sit back, relax and enjoy everything Alaska has to offer.

Packages

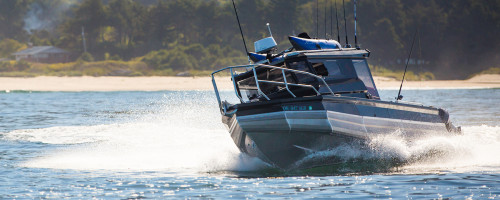

2500ucxl base package
BASE

The 2500 Ultracab® XL is packaged for serious offshore and overnight protection. With an innovative rear glass wall, cabin seating for 6, sleeping for 4, dining and extensive storage solutions, the 2500 Ultracab® XL will accommodate almost any adventure.

The rear cabin lockable door and huge glass panels make for a secure and great viewing experience

Lockable rear cabin bulkhead

The ‘XL’ is a denomination added to the smaller cabin version in the 2500 Ultracab®. It effectively creates a longer cabin through huge glass panels and rear bulkhead lockable door. The view either from the cabin or from the deck is largely uninterrupted and, with the door open, creates a great ‘flow’ to and from either space.

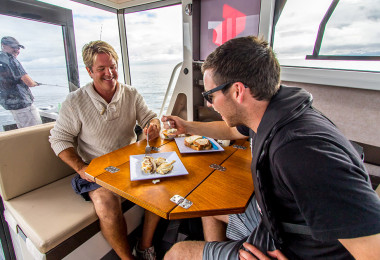

Seating for 6 and convenient dining through a clever fold down table

Cabin seating and table

The 2500 Ultracab® XL has seating for 6 with 2 x Elite Bolster helm and passenger seats, 2 x fold-down troop style seats and a port seat box for 2 people. A port-side drop-down table folds out from the cabin wall revealing a neat storage area for condiments and usable dining space complete with cupholders.

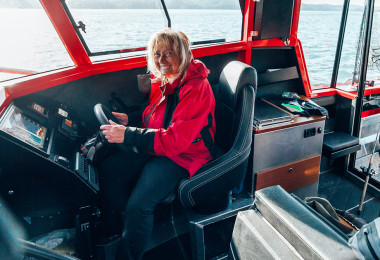

Shock mitigating Airwave pedestals make for a more comfortable ride

Elite Bolster seats on Airwaves

The Elite Bolster seats ca be found across the Stabicraft® range however on the 2500 Ultracab XL these are supported by a shock mitigating Airwave pedestal. The Airwave is a very compact, adjustable air pressured pedestal making the ride on the 2500 Ultracab® XL more comfortable again.

In Comparison

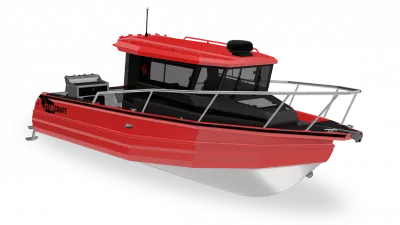

2750 Ultra Centrecab
2750 Ultra Centrecab
Length Metric (feet) 8.4m (27'5")
Max Persons 9
Recommended HP 300hp
Fuel Tank 500L (132gal)
+ Expand
Maximum HP 500hp
Maximum Engine Weight 635kg (1400lbs)
Leg Length 25”
External Beam 2.54m (100”), 2.5m AUS
Internal Beam 2.04m (80”)
Deadrise 21.5°
Tube Thickness 4mm (5/32”)
Hull Thickness 6mm (15/64”)
Total Sealed Volume (approx) 2909L (768gal)
Dry Hull Weight (approx) 1990kg (4387lbs)
Length on Trailer 10.2m (33’6”)
Boat Height (approx) 2.72m (8'.9")
View Boat

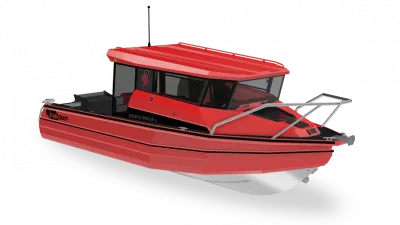

2500 Ultracab® XL
2500 Ultracab® XL
Length Metric (feet) 7.62m (25ft)
Max Persons 9
Recommended HP Twin 150hp
Fuel Tank 378L (100Gal)
+ Expand
Maximum HP 400hp
Maximum Engine Weight 635kg (1400lbs)
Leg Length 25”
External Beam 2.56m (101”)
Internal Beam 1.97m (78”)
Deadrise 19°
Tube Thickness 4mm (5/32”)
Hull Thickness 6mm (15/64”)
Total Sealed Volume (approx) 2096L (554gal)
Dry Hull Weight (approx) 1630kg (3593lbs)
Length on Trailer 9.6m (31’6”)
Get quote
2400 Supercab
2400 Supercab
Length Metric (feet) 7.3m (24’ft)
Max Persons 8
Recommended HP 200hp
Fuel Tank 300L (79gal)
+ Expand
Maximum HP 250hp
Maximum Engine Weight 537kg (1184lbs)
Leg Length 20”/Single 25”
External Beam 2.3m (91”)
Internal Beam 1.82m (72”)
Deadrise 19°
Tube Thickness 4mm (5/32”)
Hull Thickness 6mm (15/64”)
Total Sealed Volume (approx) 1833L (484gal)
Dry Hull Weight (approx) 1260kg (2778lbs)
Tow Weight (approx) 2400kg (5291lbs)
Length on Trailer 8.5m (27’10”)
Boat Height (approx) 2.51m (8'2")
View Boat
2250 Ultracab® WT
2250 Ultracab® WT
Length Metric (feet) 6.9m (22’5”)
Max Persons 8
Recommended HP 200hp
Fuel Tank 378L (100gal)
+ Expand
Maximum HP 300hp
Maximum Engine Weight 575kg (1267.6lbs)
Leg Length 25”/30”/25”
External Beam 2.55m (8’36”)
Internal Beam 1.97m (6’46”)
Deadrise 17°
Tube Thickness 4mm (5/32”)
Hull Thickness 6mm (15/64”)
Total Sealed Volume (approx) 2051L (541.8gal)
Dry Hull Weight (approx) 2000kg (4409lbs)
Tow Weight (approx) 2800kg (6172lbs)
Length on Trailer 8.4m (27’55”)
Boat Height (approx) 2.58m (8’4’)
View Boat
2250 Ultra Centrecab
2250 Ultra Centrecab
Length Metric (feet) 6.85m (22.5ft)
Max Persons 8
Recommended HP 225hp
Fuel Tank 300L (79gal)
+ Expand
Maximum HP 300hp
Maximum Engine Weight 299kg (659lbs)
Leg Length 25”
External Beam 2.54m (101”), 2.50m AUS
Internal Beam 1.97m (77.6”)
Deadrise 17°
Tube Thickness 4mm (0.160”)
Hull Thickness 6mm (0.250”)
Total Sealed Volume (approx) 2051L (541gal)
Dry Hull Weight (approx) 1787kg (3940lbs)
Tow Weight (approx) 2520kg (5555lbs)
Length on Trailer 8.4m (27’6”)
Boat Height (approx) 2.5m (8'2")
View Boat
2250 Centrecab
2250 Centrecab
Length Metric (feet) 6.85m (22.5ft)
Max Persons 8
Recommended HP 225hp
Fuel Tank 300L (79gal)
+ Expand
Maximum HP 300hp
Maximum Engine Weight 299kg (659lbs)
Leg Length 25”
External Beam 2.54m (101”), 2.50m AUS
Internal Beam 1.97m (77.6”)
Deadrise 17°
Tube Thickness 4mm (0.160”)
Hull Thickness 6mm (0.250”)
Total Sealed Volume (approx) 2051L (541gal)
Dry Hull Weight (approx) 1787kg (3940lbs)
Tow Weight (approx) 2520kg (5555lbs)
Length on Trailer 8.4m (27’6”)
Boat Height (approx) 2.5m (8'2")
View Boat
2100 Supercab
2100 Supercab
Length Metric (feet) 6.4m (21’ft)
Max Persons 7
Recommended HP 130hp
Fuel Tank 250L (66gal)
+ Expand
Maximum HP 225hp
Maximum Engine Weight 327kg (721lbs)
Leg Length 25"
External Beam 2.30m (91”)
Internal Beam 1.82m (72")
Deadrise 20°
Tube Thickness 3mm (1/8")
Hull Thickness 5mm (13/64")
Total Sealed Volume (approx) 1720L (454gal)
Dry Hull Weight (approx) 960kg (2116lbs)
Tow Weight (approx) 1900kg (4189lbs)
Length on Trailer 7.9m (25’11”)
Boat Height (approx) 2.47m (8'1")
View Boat
2050 Supercab
2050 Supercab
Length Metric (feet) 6.3m (20.8ft)
Max Persons 7
Fuel Tank 200L/52.83gal
+ Expand
Maximum HP 175hp
Leg Length 25"
External Beam 2.29m (90.1")
Internal Beam 1.72m (67.87")
Deadrise 16°
Tube Thickness 3mm (1/8")
Hull Thickness 5mm (13/64")
Total Sealed Volume (approx) 1838L/485.5gal
Dry Hull Weight (approx) 925kg (2039lbs)
Tow Weight (approx) 1549kg (3414lbs)
Length on Trailer 7.9m (25'91")
Boat Height (approx) 2.41m (7'9")
View Boat
1850 Supercab
1850 Supercab
Length Metric (feet) 5.69m (18.6ft)
Max Persons 6
Fuel Tank 150L/39.6gal
+ Expand
Maximum HP 140hp
Leg Length 25"
External Beam 2.29m (90.1")
Internal Beam 1.72m (67.87")
Deadrise 16°
Tube Thickness 3mm (1/8")
Hull Thickness 4mm (5/32")
Total Sealed Volume (approx) 1496L/395.2gal
Dry Hull Weight (approx) 740kg (1631lbs)
Tow Weight (approx) 1362kg (3002lbs)
Length on Trailer 7.3m (23'95")
Boat Height (approx) 2.43m (8')
View Boat
1850 Fisher
1850 Fisher
Length Metric (feet) 5.69m (18.7’ft)
Max Persons 6
Recommended HP 90hp
Fuel Tank 150L (39.6gal)
+ Expand
Maximum HP 140hp
Maximum Engine Weight 217kg (478.4lbs)
Leg Length 25”
External Beam 2.3m (7.54’)
Internal Beam 1.724m (5.66’)
Deadrise 16°
Tube Thickness 3mm (0.118”)
Hull Thickness 4mm (0.157”)
Total Sealed Volume (approx) 1496L (395.2gal)
Dry Hull Weight (approx) 748kg (1651lbs)
Tow Weight (approx) 1340kg (2954lbs)
Length on Trailer 6.7m (22’)
Boat Height (approx) 1.8m (5'9")
View Boat
1550 Fisher
1550 Fisher
Length Metric (feet) 4.72m (15.5ft)
Max Persons 5
Recommended HP 50hp
Fuel Tank Tank Tote Tank
+ Expand
Maximum HP 75hp
Maximum Engine Weight 166kg (366lbs) Yamaha F75
Leg Length 20”
External Beam 2.02m (79.5”)
Internal Beam 1.46m (57.5”)
Deadrise 15°
Tube Thickness 3mm (1/8”)
Hull Thickness 4mm (5/32”)
Total Sealed Volume (approx) 984L/260gal
Dry Hull Weight (approx) 415kg (915lbs)
Tow Weight (approx) 740kg (1631lbs)
Length on Trailer 6.0m (19’9”)
Boat Height (approx) 1.52m (5’ft)
View Boat
1550 Frontier
1550 Frontier
Length Metric (feet) 4.8m (15.8ft)
Max Persons 5
Fuel Tank Optional 60L/15.85gal
+ Expand
Maximum HP 75hp
Leg Length 20"
External Beam 2.01m (79.1”)
Internal Beam 1.35m (53.14”)
Deadrise 15°
Tube Thickness 3mm (0.118”)
Hull Thickness 4mm (0.118”)
Total Sealed Volume (approx) 984L/260gal
Dry Hull Weight (approx) 550kg (1212bs)
Tow Weight (approx) 985kg (2171lbs)
Length on Trailer 6.1m (20’0”)
Boat Height (approx) 1.68m (5’5”)
View Boat
1450 Frontier
1450 Frontier
Length Metric (feet) 14.5ft (4.42m)
Max Persons 4
Recommended HP 30hp
Fuel Tank Tote Tank
+ Expand
Maximum HP 50hp
Leg Length 20"
External Beam 1.89m (75.7”)
Internal Beam 1.35m (53.3”)
Deadrise 15°
Tube Thickness 3mm (0.118”)
Hull Thickness 3mm (0.118”)
Dry Hull Weight (approx) 290kg (683lbs)
Tow Weight (approx) 720kg (1587lbs)
Length on Trailer 5.9m (19’4”)
Boat Height (approx) 1.41m (4'6")
View Boat
1450 Explorer
1450 Explorer
Length Metric (feet) 4.42m (14.5ft)
Max Persons 4
Recommended HP 25hp
Fuel Tank Tote Tank
+ Expand
Maximum HP 40hp
Leg Length 20”
External Beam 1.89m (75.7”)
Internal Beam 1.35m (53.3”)
Deadrise 15°
Tube Thickness 3mm (0.118”)
Hull Thickness 3mm (0.118”)
Total Sealed Volume (approx) 960L / 253.6gal
Dry Hull Weight (approx) 265kg (628lbs USA)
Tow Weight (approx) 655kg / 1444lbs
Length on Trailer 5.9m (19’4”)
Boat Height (approx) 1.04m (3'4")
View Boat

Why Stabi

Built to Last
Legendary Stabi toughness.
ULTIMATE ALL-ROUNDER
Engineered no matter the adventure.
BORN STAUNCH BY NECESSITY
Formed by the rugged roaring forties.
OFFSHORE PERFORMANCE
Adventure tested for confidence.
Find out more
International Dealership Network across The globe Find Dealership
Explore models by Size Range Explore Range Explore models by Style Series Explore Series
